WP Auto Photo Albums by castlecode

Thank you for purchasing this plugin. If you have any questions that are beyond the scope of this help file, please feel free to email via my user page contact form here. Thank you!

You need to unzip the file you download from CodeCanyon, inside you'll find a file named "wp_auto_photo_albums.zip". This zip file is the one you need to upload into Wordpress.

To add a WordPress Plugin follow the instructions below

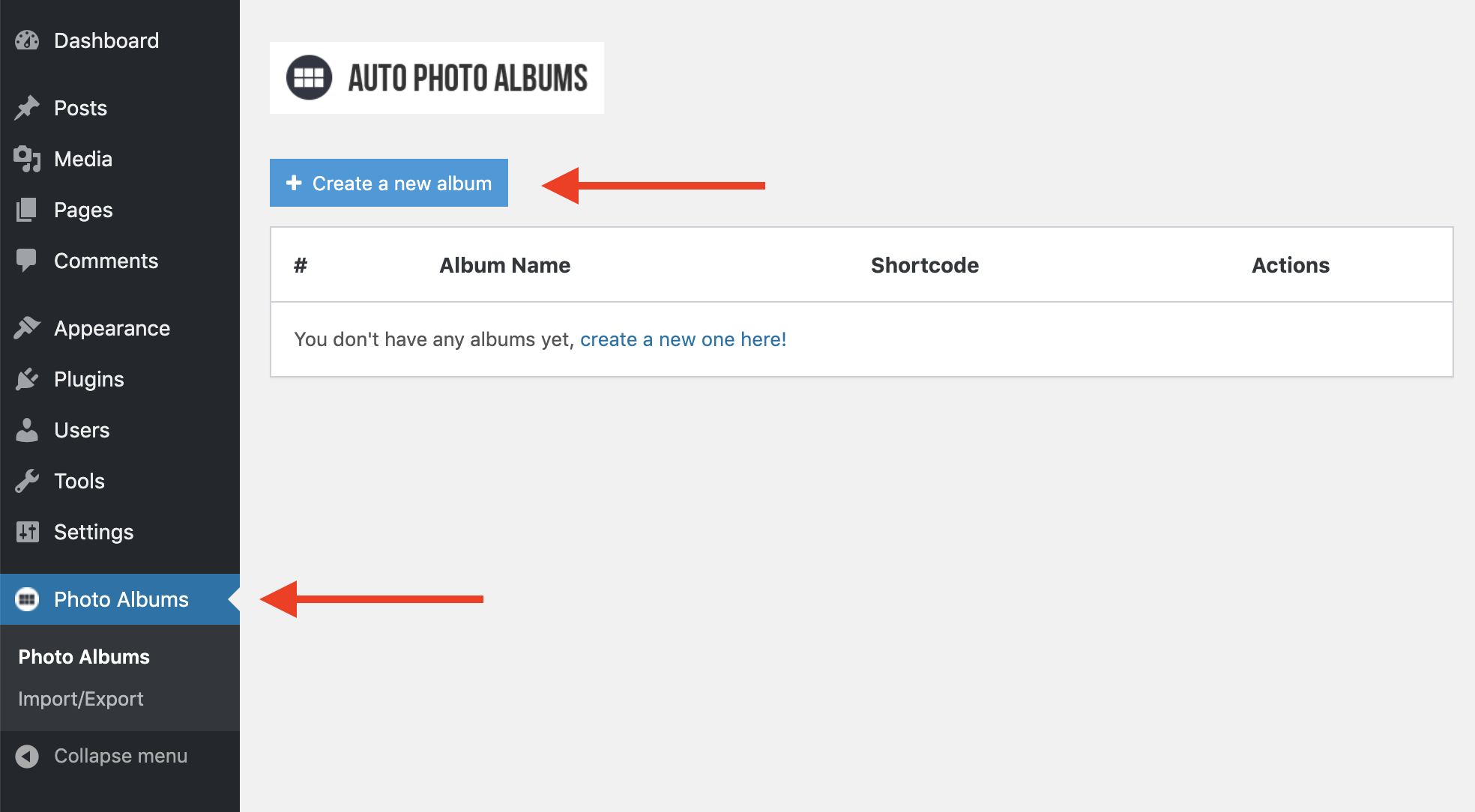

You need to go to the Photo Albums admin panel, through the left dashboard menu. Then click the "Create a new album" button.

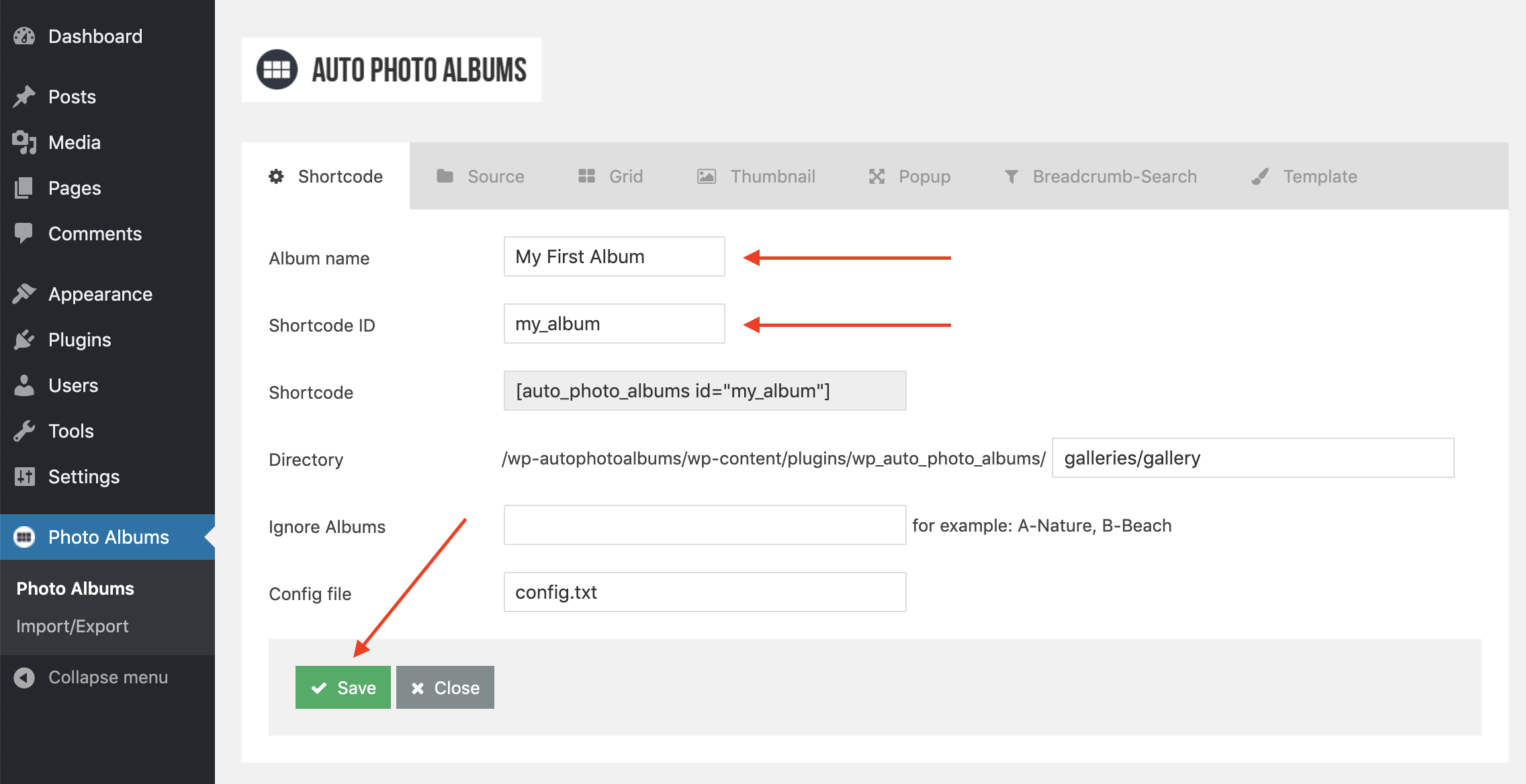

Specify an album name (just for identification purpose in the admin panel) and a UNIQUE shortcode id (which would be used in the shortcode). Then click "Save".

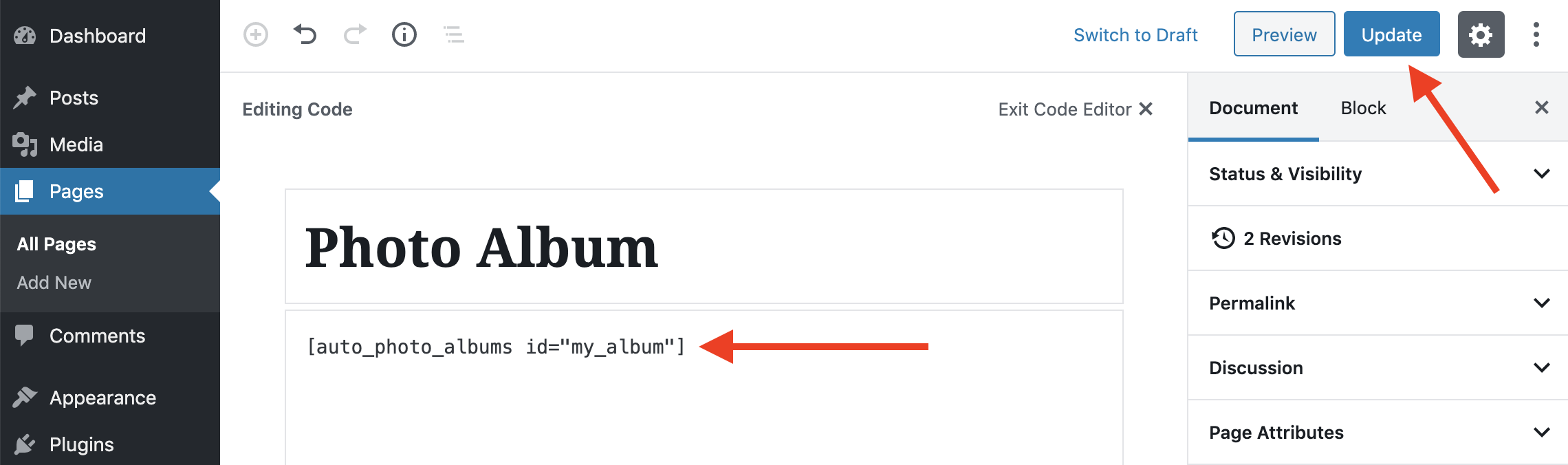

Copy the shortcode and paste it in any page or post, in this example the shortcode would be [auto_photo_albums id="my_album"]

You may have noticed, when building your first album, an option named "Directory", that's the directory where your images are located, that's the folder that the plugin will use to build the album. You can change the directory if you want.

You need to navigate to that directory via FTP, and once inside it you can edit/erase/add images or folders (the folders will be your albums)

No albums, only images

If you don't want any album only images then you can just drag and drop your images in the gallery folder!
The folder will look like this:

The plugin will take care of reading them, just refresh your page and you will see these images automatically added to the gallery!

With albums

If you want albums then inside the "gallery" folder you need to create subfolders that will be the albums of your gallery (e.g. Illustrations, Photography, Drawings, etc.) and inside those folders you can place the images you want. And that's it, refresh the page.
The caption box that shows when you move the mouse over an image will be the name of the image!

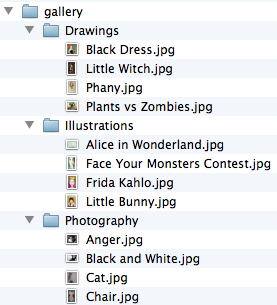

The directory will look like this:

Without limit

Is not over, you can keep creating folders of images inside a folder inside a folder inside a folder and the plugin will read them all and create a navigation breadcrumb at the top so you can go back.

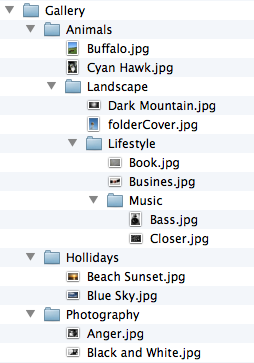

The directory will look like this:

Now is time to add some thumbnails to each image.

To improve performance you can add thumbnails to the gallery.
The thumbnails will be used in the grid and the original images in the lightbox (when you click on a thumbnail).
To make a thumbnail just add a folder named "thumbnails" and inside place the thumbnails of your images, the thumbnail must have the exact same name of the original image so the plugin can recognize it.

For example if you wish to add a thumbnail for an image named "Black Dress.jpg" you will do it like this:

You don't need to add a thumbnail for each image, just for the ones you like.

Important: make sure that the folder of the thumnails is named "thumbnails" all in lowercase and that the thumbnail has the exact same name of the original.
Heads Up! For performance be careful with the size of your images, the images in the live preview are around 180kb and the thumnails around 30kb.

You can place a .txt file inside your gallery so you can add/edit some extra information about your images or albums, for example, maybe you wish to add a youtube video for some of your images or some tags or you can even add some extra description to your albums.

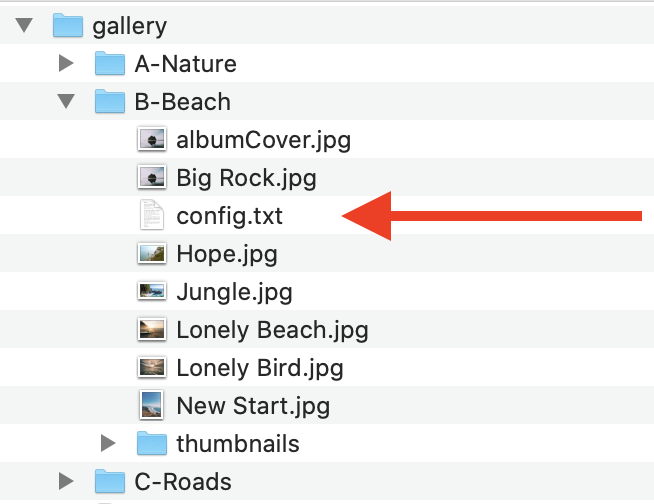

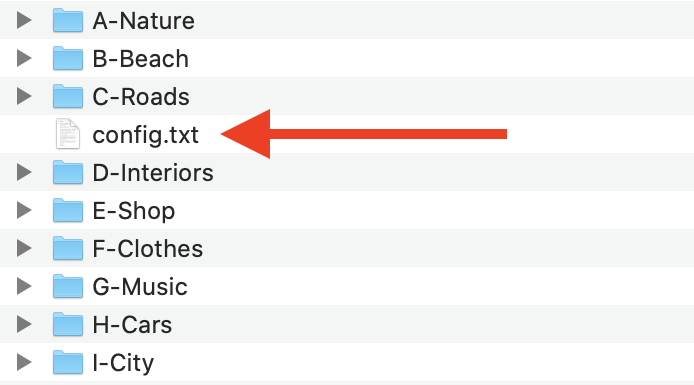

So first place a .txt file inside your folder, for example config.txt, as follows:

Then open it in some text editor and add the following text

album           => Category 1
description     => Lorem ipsum dolor sit amet.

image           => Category 1/Autumn.jpg
link            => https://codecanyon.net/item/auto-photo-albums-multi-level-image-grid/5319229
popup_src       => https://www.youtube.com/watch?v=5guMumPFBag

image           => Category 2/Empty Cups.jpg
popup_src       => https://www.youtube.com/watch?v=5guMumPFBag

image           => Category 3/Morning.jpg
popup_src       => https://www.youtube.com/watch?v=UrIbxk7idYA

This is just en example .txt file, as you can see you need to specify the URL of the image/album and then below you can add some extra variables to each, like link, popup_src, ratio, description, etc

Important the "=>" is important since the plugin will use it to divide the variable from the value.

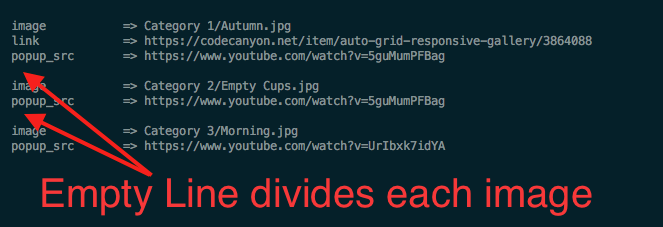

Also the empty lines between images is very important so the plugin can differentiate between several images, you can use 1 or 2 or 3 empty lines between each image! as follows:

These are the default variables the plugin uses so you can modify them if needed, also you can add your own:

image           => Category 1/Autumnn.jpg
link            => https://codecanyon.net/?param=param
name            => My Image Name
thumb_src       => Category 1/thumbnails/Autumnn.jpg
ratio           => 1x1
popup_src       => https://www.youtube.com/watch?v=5guMumPFBag
popup_type      => iframe

Finally you need to tell the plugin which .txt file to use, and you can do that by passing it in the admin panel as follows (you can leave it empty if you don't want to use a .txt file):

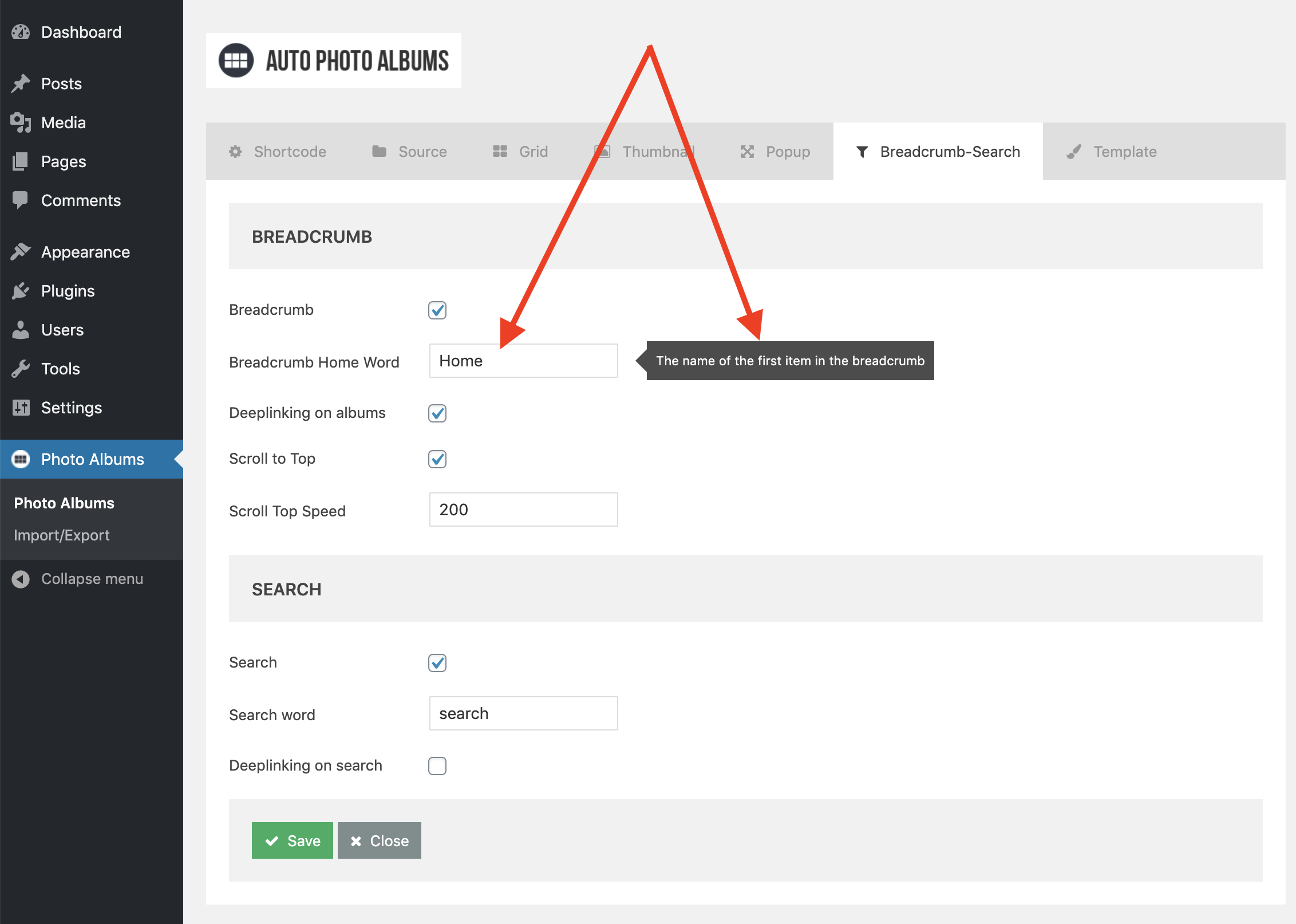

You can play around with all the options in the admin panel, if you put your mouse over any option you'll see a little description about it, so you know what it does.

You may have noticed an option named "ALBUM TEMPLATE" and "THUMBNAIL TEMPLATE", in there you can specify the HTML of each image/item, you can add/edit/remove HTML, here's an example of a THUMBNAIL TEMPLATE:

<div class="media-box-image mb-open-popup" {{link}} data-src="{{popup_src}}" data-title="{{name}}" data-type="{{popup_type}}">
    <div data-thumbnail="{{thumb_src}}" {{ratio}} data-title="{{name}}" data-alt="{{name}}"></div>
    <div class="thumbnail-overlay">

        <div class="thumbnail-overlay-animated" data-from="top">
            <div class="thumbnail-overlay-title">{{name}}</div>


Each variable is inside double brakets, for example: {{name}} which is the name of the image.

here you can also pull variables from the .txt file, for example if you add a variable in the .txt file like this: text => some random text here you can pull that variable in the template like this: {{text}}. The plugin will take care of replacing that variable with what you have specified in the .txt file

Heads up! In the different examples of the plugin (by importing the examples) you'll find different templates for each example, you can take some ideas from there.

When you order the images 'ByName' and you want to control the order of the images and albums just add a-, b-, etc... at beginning of the name of each image/album (the a-,b-, etc... will not be visible in the gallery):

By default the plugin will choose a random image inside the album and use it as the "album cover" image.
But you can name an image "albumCover" (albumCover.png, albumCover.jpg, etc) and the plugin will use it as the "album cover" image (this image will not be shown in the grid when you open that album).

You can change the default configuration for a specific album
For example: by default the gallery has 3 columns but maybe in a specific album you wish to have 4 columns, then in that album add a file named "settings.txt" and in that file add the new JS settings, something like this:

"grid"          :   {
                        "columns" : 4,
                        "fancybox" : {
                            "transitionEffect" : "tube"
You need to be very careful with the JS format, for example all strings must have double quotes (i.e. "grid"), also don't leave an extra comma at the end.

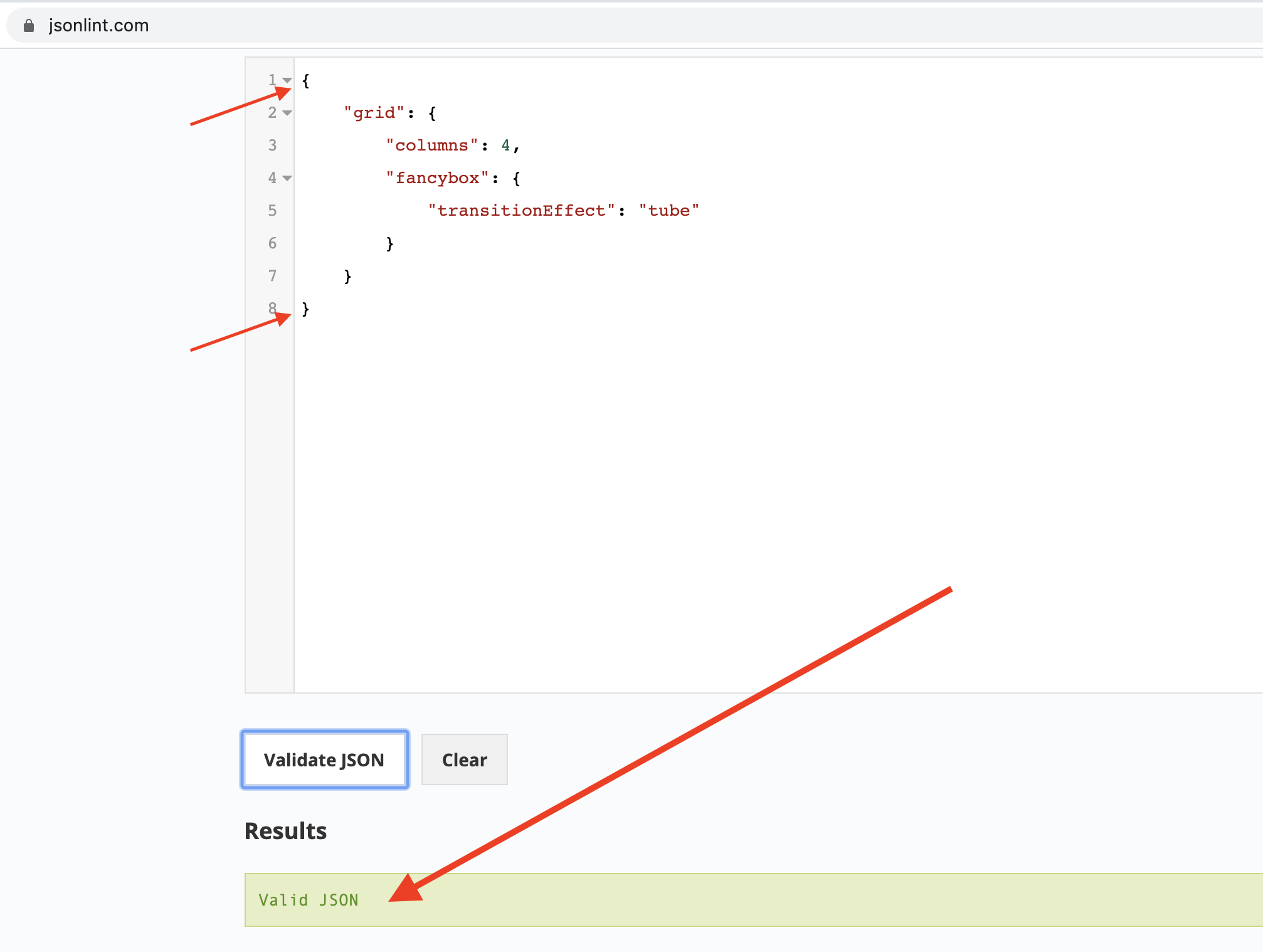

You can validate your JS format here: https://jsonlint.com/ just wrap your settings in a {} and that's it, test it out, for example:

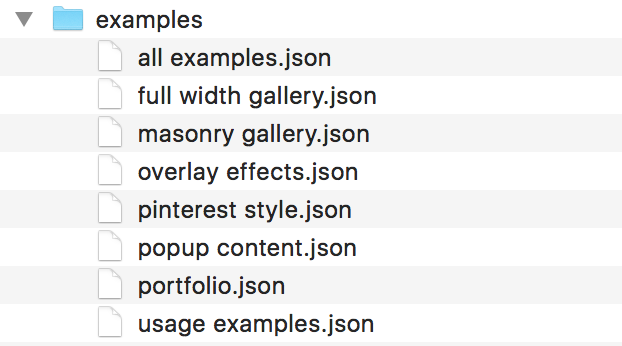

Inside the file you downloaded from CodeCanyon you'll see a folder named "examples" inside that folder you'll find several .json files containing the examples of the live preview of the plugin as follows:

You can import the "all examples.json" file in order to get all the examples into your Wordpress installation, or choose to import only some of them.

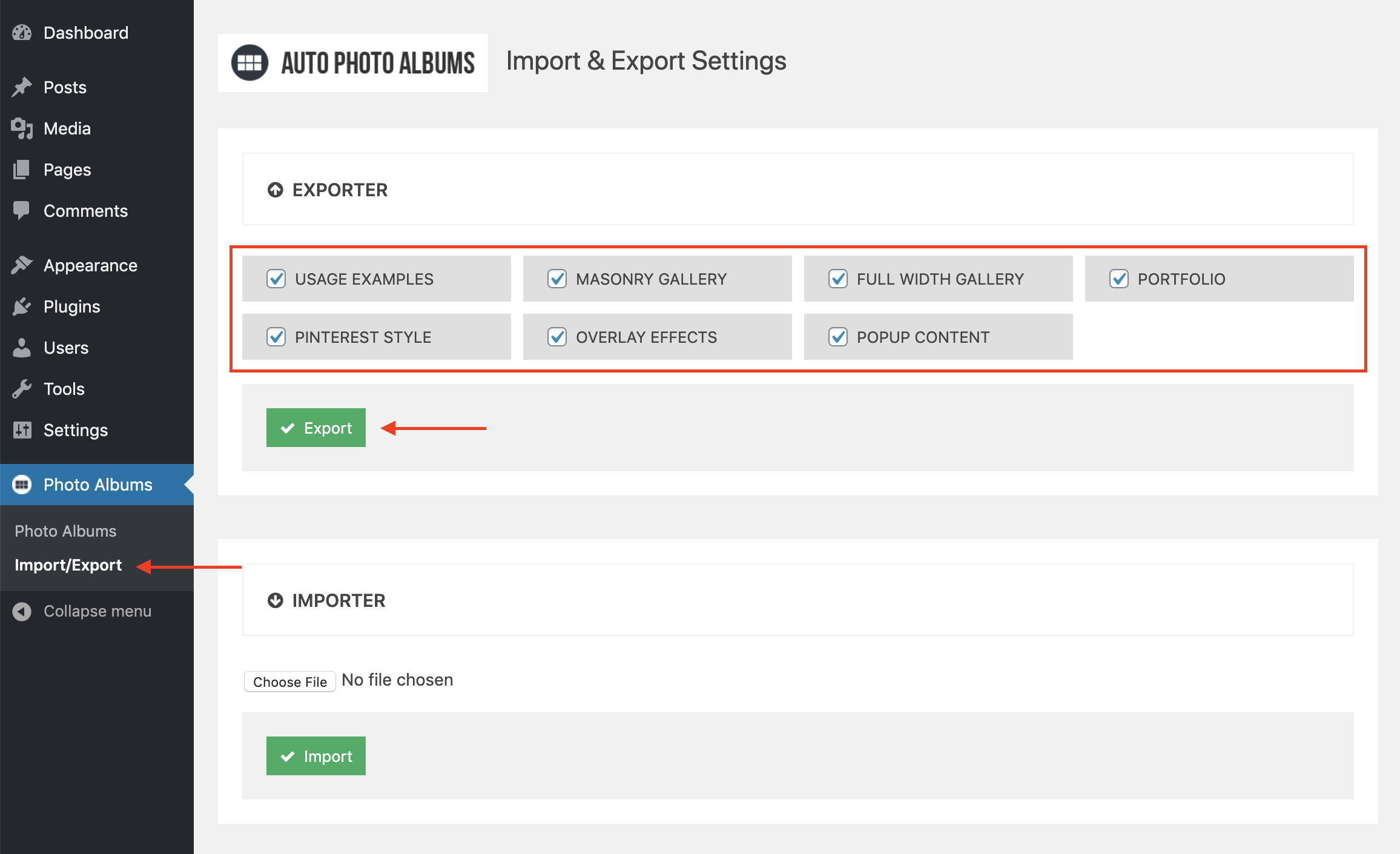

You can import examples by going to the "Import/Export" option in the Auto Photo Albums admin panel. Then scroll down to the "IMPORTER" section and select the .json file. Finally click "Import"

You can also export your albums (in case you wish to import them in another Wordpress installation), in order to do so go to the "EXPORTER" section, choose the albums you wish to export and click the "Export" button, a .json file will be downloaded to your computer.
